| Voltage(VDC) | Power(W) | No Load | Rated Load | Torque(N.m) | Ratio | Stage | Lenght(mm) | ||
| Current(A) | Speed(r/min) | Current(A) | Speed(r/min) | ||||||
| 24 | 14 | 0.3 | 1033 | 1.09 | 857 | 0.2 | 3.5 | 1 | 98 |
| 24 | 0.3 | 904 | 1.09 | 750 | 0.2 | 4 | |||
| 24 | 0.3 | 602 | 1.09 | 500 | 0.3 | 6 | |||
| 24 | 13 | 0.34 | 226 | 1.09 | 188 | 0.6 | 16 | 2 | 110 |
| 24 | 0.34 | 151 | 1.09 | 125 | 1.0 | 24 | |||
| 24 | 0.34 | 100 | 1.09 | 83 | 1.5 | 36 | |||
| 24 | 11 | 0.37 | 56 | 1.09 | 47 | 2.3 | 64 | 3 | 121 |
| 24 | 0.37 | 25 | 1.09 | 21 | 5.3 | 144 | |||
| 24 | 10 | 0.42 | 14 | 1.09 | 12 | 8.3 | 256 | 4 | 133 |
| 24 | 0.42 | 6 | 1.09 | 5 | 18.7 | 576 | |||
| 24 | 0.42 | 4 | 1.09 | 3 | 28.1 | 864 | |||
Specifications:

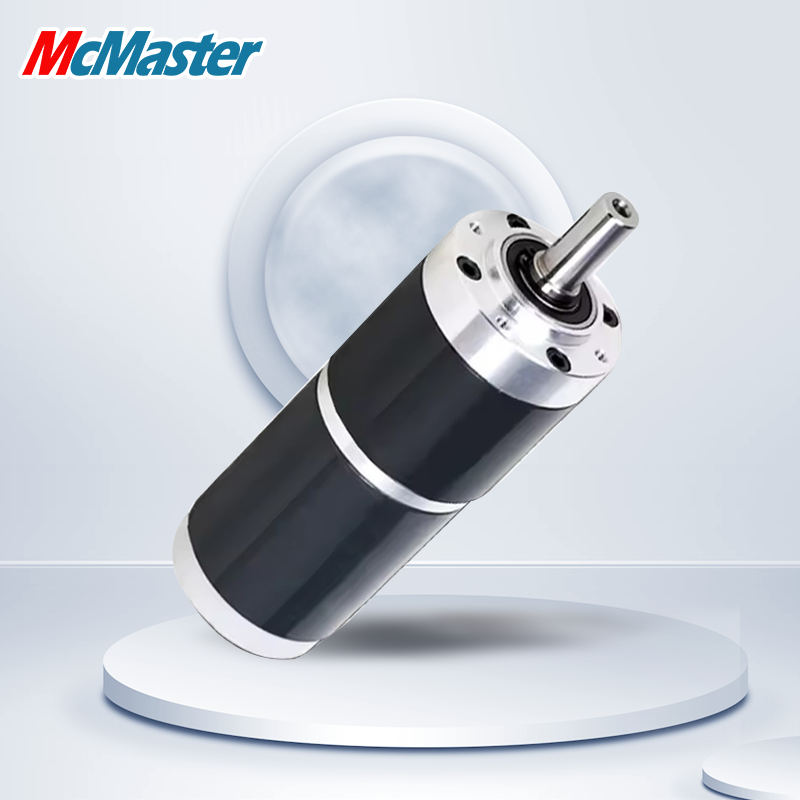

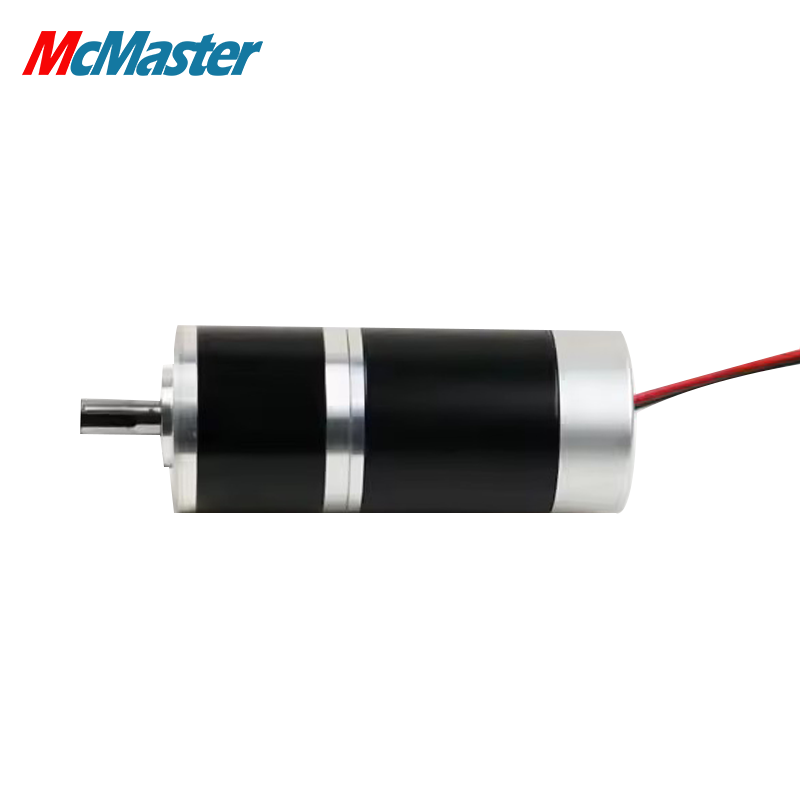

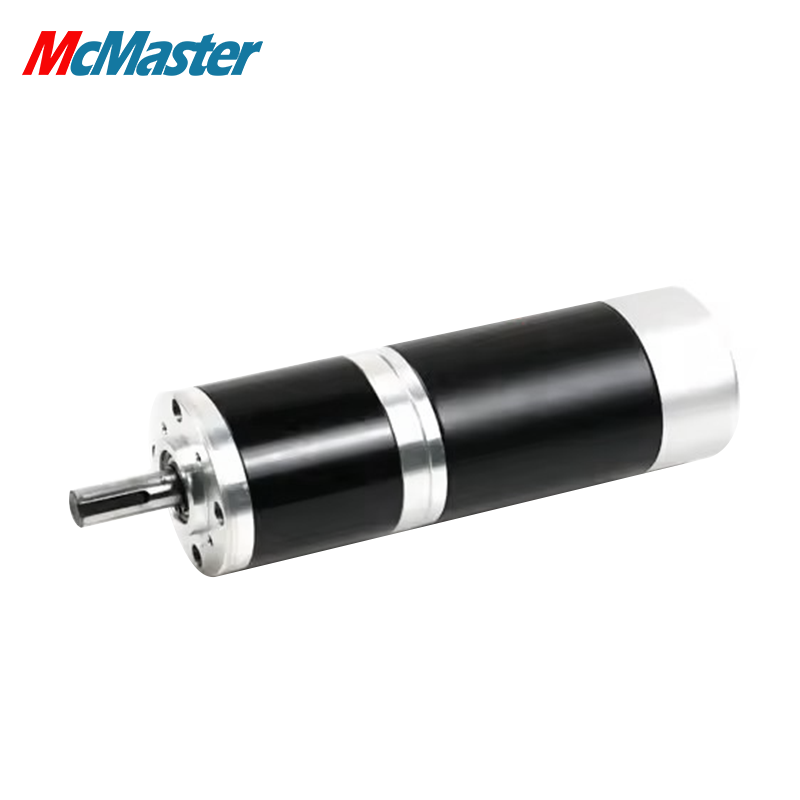

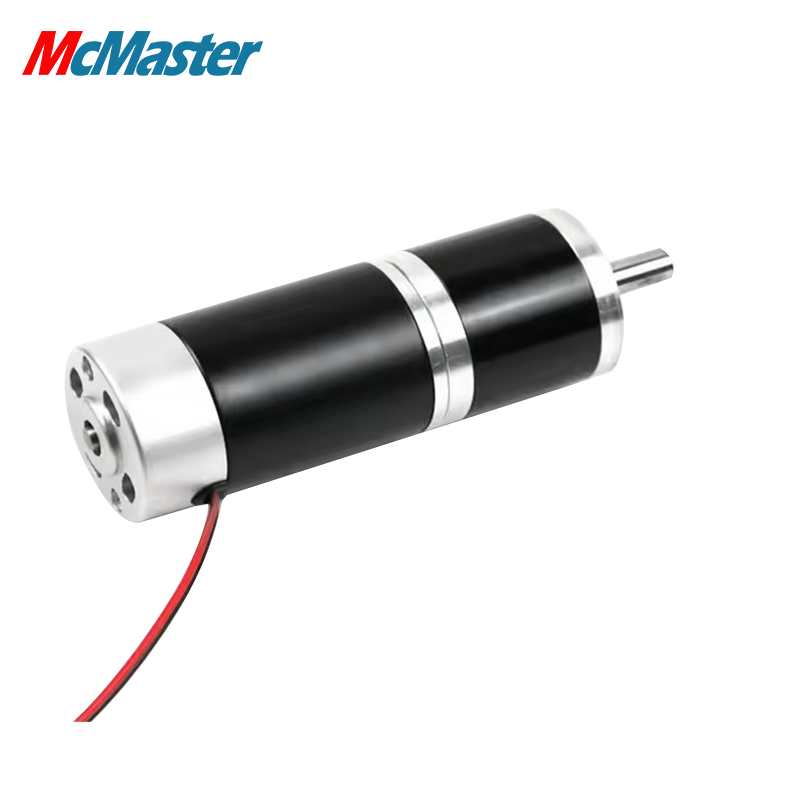

42diameter Planetary Gear Motor Can reach 10N.m We have different types (From 0.8N.m to 33N.m) of dc gear motor for you to choose.
