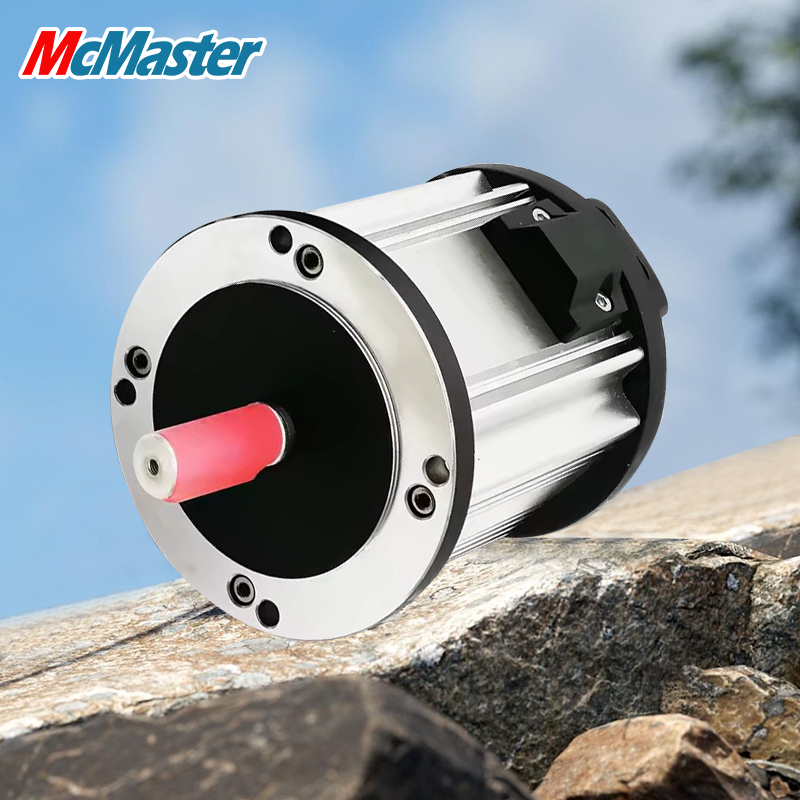

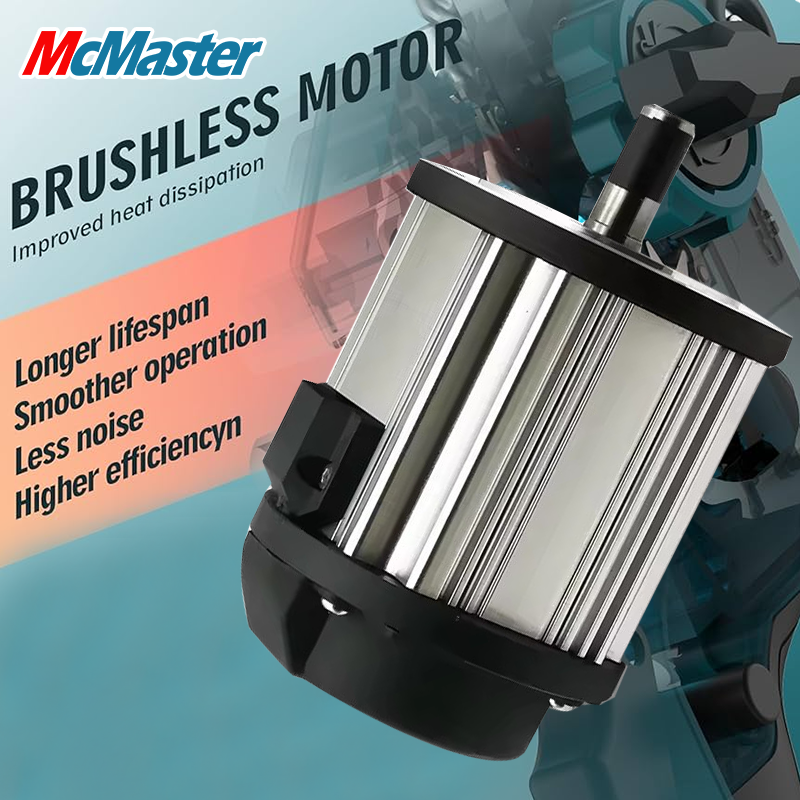

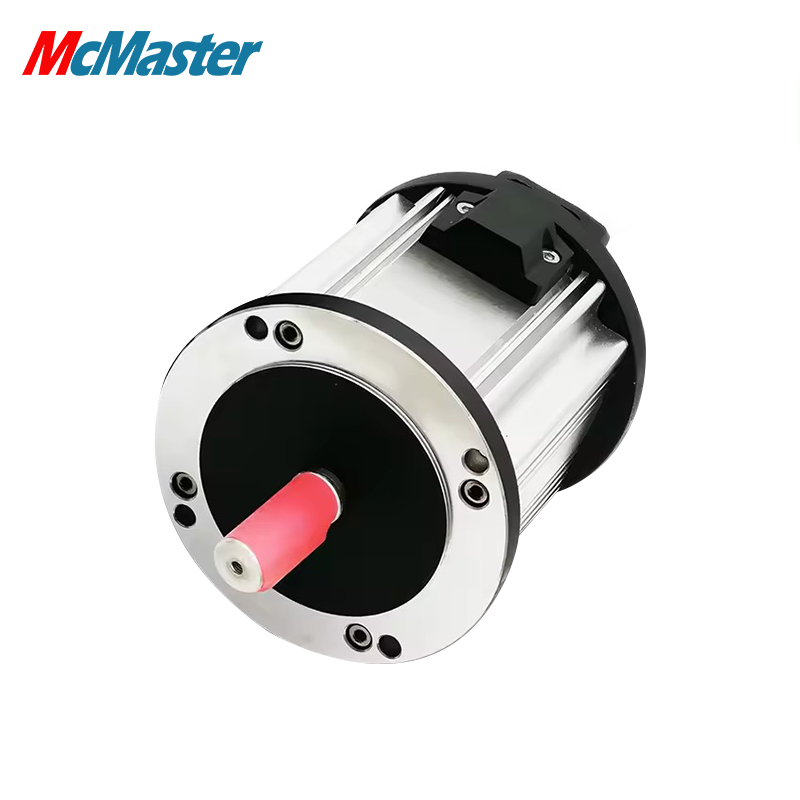

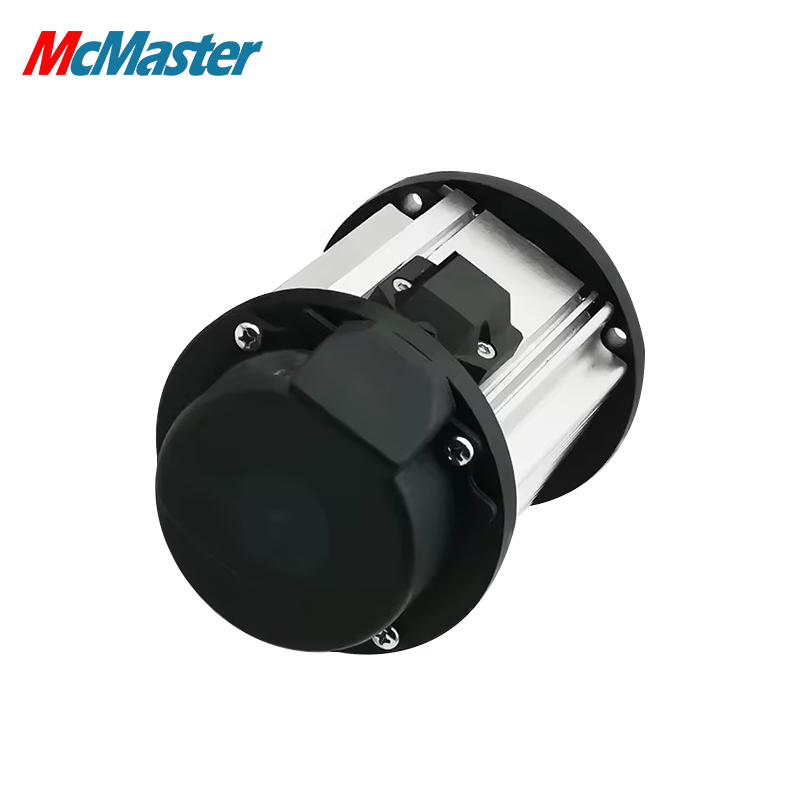

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-19

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-20

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-21

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-22

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-23

mcmaster emm718 high speed brushless dc motor bldc motor 24v 48v 310v 3000rpm permanent magnet ie 2 drip proof per request-24

Mcmaster EMM718 High Speed Brushless DC Motor, BLDC Motor 24V 48V 310V 3000rpm Permanent Magnet IE 2 Drip-proof Per Request

DataSheets:

DataSheets:

Description

		No Load		Rated Load
Model	VOLTAGE(VDC)	CURRENT(A)	SPEED(r/min)	CURRENT(A)	SPEED(r/min)	TORQUE(Nm)	Power(W)	Length(mm)
EMM718-1	48	4.5	0.4	13.5	3000	1.2	125	95
EMM718-2	48	6.4	0.64	19.5	3000	1.92	200	105
EMM718-3	310	1.5	0.95	4.5	3000	2.85	300	125
EMM718-4	310	2	1.27	6	3000	3.81	400	145
