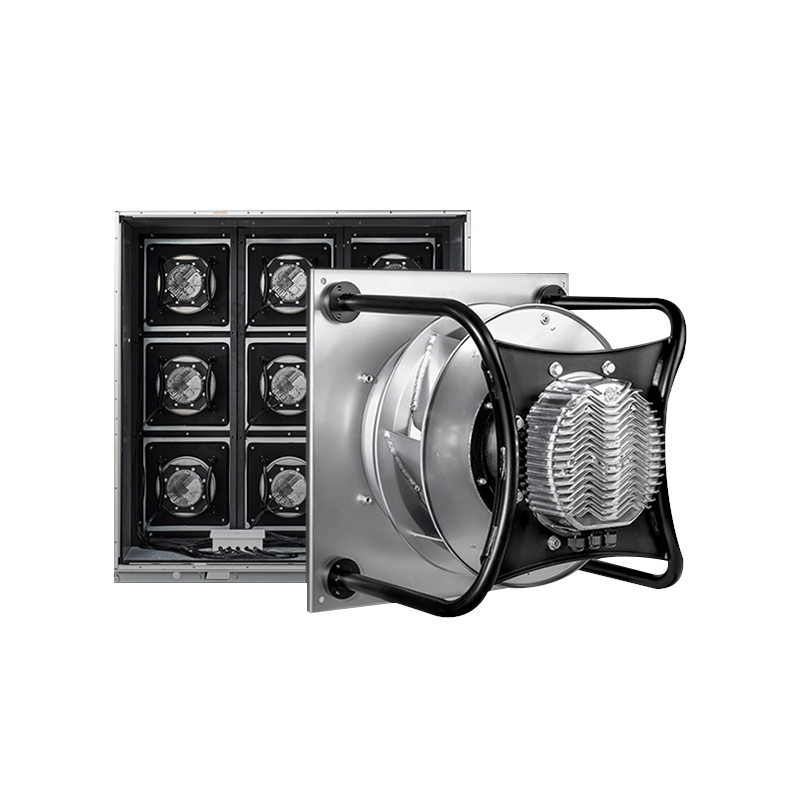

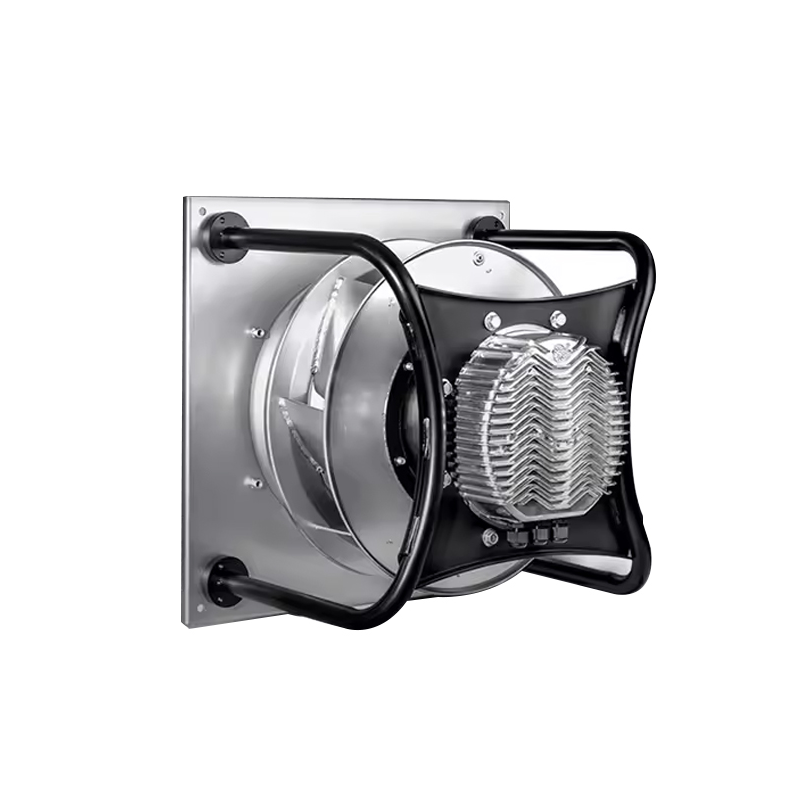

Overview
On the foundation of the successful centrifugal fan product line, we are proud to offer our upgraded, cutting edge plug fans.
While keeping all the advantages, plug fans are now more intelligent than ever, with integrated sensors, control panels easily accessible all available with a simple, universal yet effective installation.
Easier Installation than Ever
With the unique mounting bracket design, the product can fit most applications without having to modify. Coupled with EC adjustable power and vast control/communication methods, this product enables versatility to next level.
Plug and play
Integrated control interface invites users to play around with all the control and communication features built-in with this product. The control system design allows both configuration on hardware level (by simply plugging in) and software level. Control has never been so easy!
Quieter Operation
Noise level plays an important role when it comes to the using experience and the general health of the public. With efficient motors, intelligent control system and aerodynamically configured fan blades, we can reduce the noise level to as low as 50 dBs.
Quick Detail:
As an upgraded version of the centrifugal fans, the plug fans can do everything its predecessor can, and better.
The main applications for this fan are:
lIndustrial Ventilation

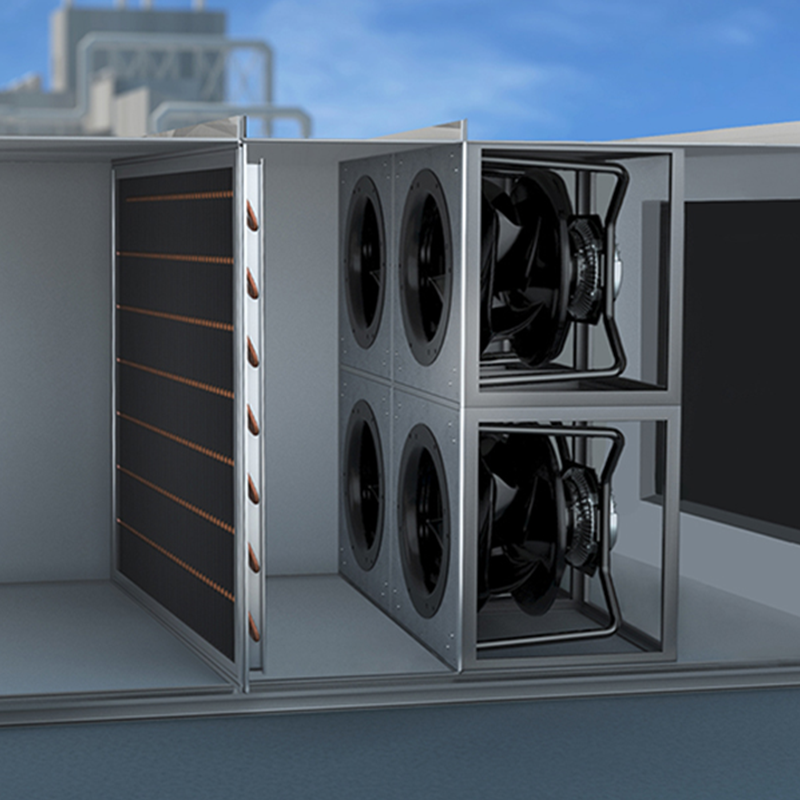

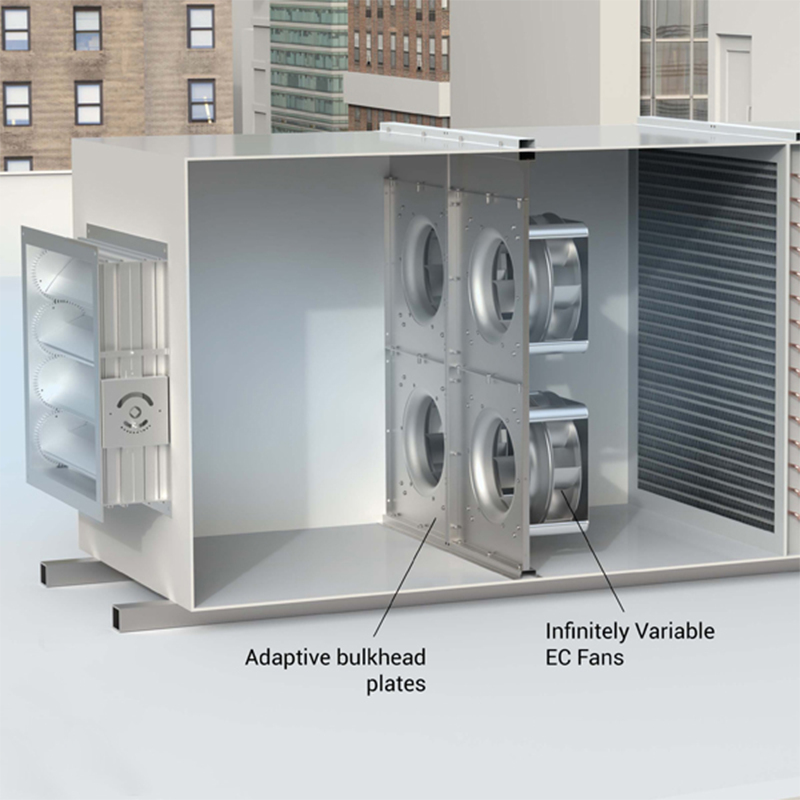

lHVAC Systems
lAir Purification
lCooling & Heat Exchange
lAgriculture and mining
lEtc.
The core specifications of plug fans are:
lPower ratings (voltage, power)
lImpeller diameters
lStatic pressure
lFan speed
lBlade Material
Please refer to table below for the complete specification list. For our catalog, please click the link: Catalog
|
Place of Origin: |
China |
|
Brand Name: |
McMaster |
|
Impeller O.D. |
175 - 630mm |
|
Input Power |
70 - 4300w |
|
Air Volume |
570 - 17000m³/h |
|
Minimum Order Quantity: |
2 Sets |
|
Lead Time: |
Normal production lead time 30 days |
|
Supply Ability: |
10,000 units/month |
|
Impeller O.D. |
175 - 630mm |
|
Input Power |
70 - 4300w |
|
Air Volume |
570 - 17000m³/h |
|
Protection Level |
Customizable |
|
Mounting Method |
Customized |
|
Pressure Nozzle |
Customized |
|
Communication Protocol |
Modbus, CAN bus, mainly RS-485 |
|
Certifications |
UL, CB, CE, CCC, CQC, PSE, ETL, ROHS |
|
Warranty |
2 years (Extended warranty may apply) |
Why Choose Us:
lMcMaster has been supplying fan products worldwide for over 23 years. With our rich experience and in-depth understand of our customers, we have successfully expanded our fields of application to air purifying, server rooms, HVAC, industrial air extraction, etc.
lMcMaster knows what customers need. The team strives to provide hassle-free total solution that maintain a consistent good quality, competitive cost while keeping the purchasing experience efficient, reliable and enjoyable.
lOur quality mindset - quality is everyone’s job. Incorporate TQM/TQE, Six Sigma System and all other tools and systems, we strive for nothing but the best for the customers. McMaster is also ISO 9001 certified.
