Overview
McMaster offers linear actuator supply and customization of all platforms. Our range includes Micro Actuators, Mini Actuators, Standard Actuators, Industrial Actuators and Tubular & Track Actuators.
With dedication to customization, our team at McMaster works with customers as a team, developing the most fitting motors for each individual application. We take pride in our technical experience, production capability and product quality, and we are most certain that you will be satisfied with the solutions we offer.
Mounting Options
We offer different types of mounting options and brackets for our linear actuators. We can produce according to customers’ designs, recommend the mounting option based on application, or work with customer to develop a dedicated mounting solution.

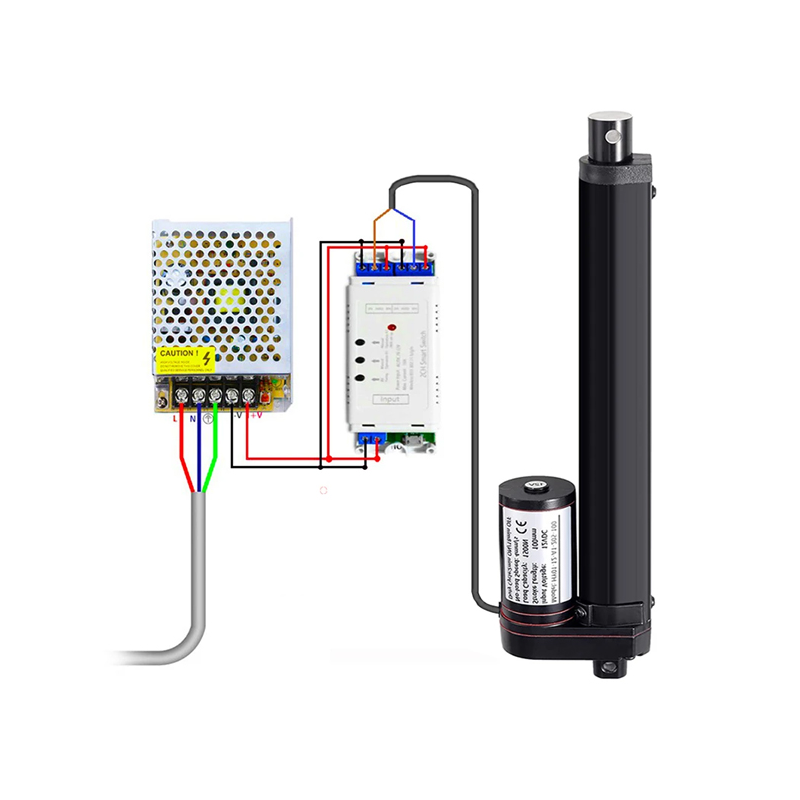

Control System
Our control system draws low current, which enables universal connectivity. We provide control methods such as control boxes, joysticks, simple push button, remote control, and relayed controls. All controls made in house, dedicated to fit the application.
Customization Options
Our Customization options exceeds from choosing models. We offer extensive customization that fits every available voltage input, stroke length, force requirement, mounting options & dimensions, control options, etc. We put in all our effort to ensure a cost-effective, efficient, reliable solution to our customers.
Quick Detail:
Linear actuators (also known as linear motors, linear drives, push-pull actuators) have a wide range of application in different industries.
They are commonly used in:
lHome Automation
lAutomotive
lGeneral Automation
lManufacturing
lRenewable Energy
lConstruction
lEtc.
The key specifications of linear actuators consist of:
lInput Voltage
lStroke Length
lPushing Force
Please refer to table below for the complete specification list. For our catalog, please click the link: Catalog
Specifications:
|
Place of Origin: |
China |
|
Brand Name: |
McMaster |
|
Voltage Range: |
12V/24V/36V/48V/72V |
|
Stroke Range: |
Customized |
|
Load Capacity: |
500-12000N |
|
Minimum Order Quantity: |
2 Sets |
|
Lead Time: |
Normal production lead time 35 days |
|
Supply Ability: |
10,000 units/month |
|
Input Voltage Range |
12/24/36/48/72V |
|
Stroke Range |
Fully Customized |
|
Feedback Type |
Limit Switch/Potentiometer/Hall sensor |
|
Duty Cycle |
Typically 10%, customizable |
|
Weather Protection |
IP65 or higher |
|
Overload Protection |
Built-in |
|
Operation Temperature |
-15℃ ~ 45℃ (customizable) |
|
Limit-Switch |
Available |
|
Cable Length |
Customized |
|
Connector |
Customized |
|
Mounting |
Customized |
|
Certifications |
UL, ETL, CE, ROHS, PSE, CCCF |
|
Warranty |
1-2 years (Extended warranty may apply) |
Why Choose Us:
lMcMaster has been supplying linear actuators worldwide for over 23 years. With our rich experience and in-depth understand of our customers, we have successfully expanding our linear actuator fields of application to solar systems, smart home appliances, industrial & production automation, etc.
lMcMaster knows what customers need. The team strives to provide hassle-free total solution that maintain a consistent good quality, competitive cost while keeping the purchasing experience efficient, reliable and enjoyable.
lOur quality mindset - quality is everyone’s job. Incorporate TQM/TQE, Six Sigma System and all other tools and systems, we strive for nothing but the best for the customers. McMaster is also ISO 9001 certified.
