Place of Origin: |
China, Vietnam |
|
Brand Name: |
McMaster |
|
Voltage Range: |
12/24/48/72/110/220V |
|
Rated Load Current: |
400-88000mA |
|
Rated Load Speed: |
800-6300rpm |
|
Torque: |
0.015-4Nm |
|
Power: |
5-1000W |
|
Minimum Order Quantity: |
2 Sets |
|
Lead Time: |
Normal production lead time 30 days |
|
Supply Ability: |
10,000 units/month |

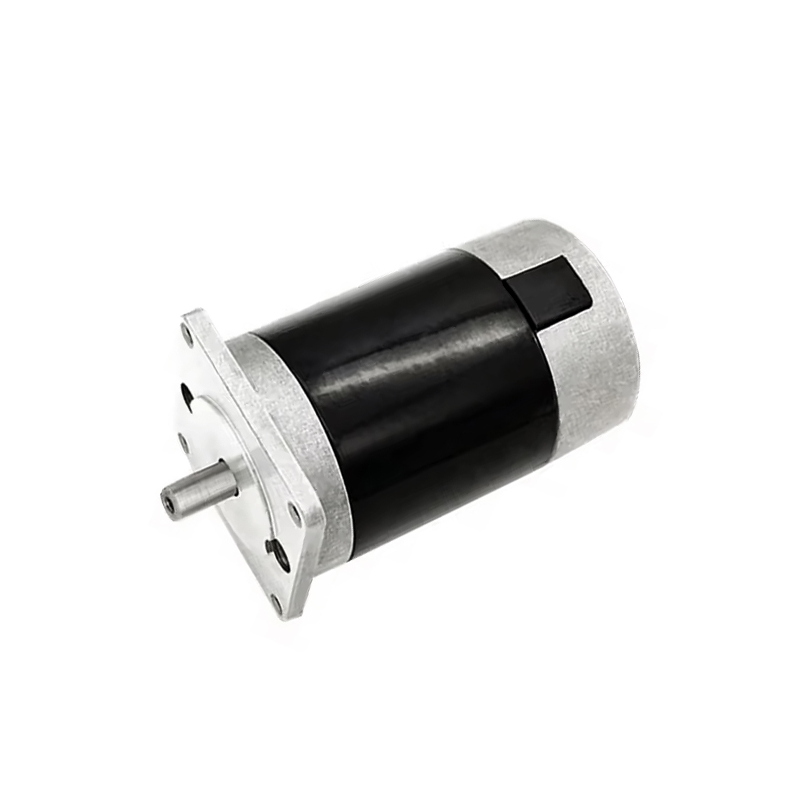

Overview
McMaster has been in the market of DC motors since the establishment of the company. With our strong expertise and individual dedication for every customer and application, we have successfully supplied DC solutions to many customers world-wide.
With dedication to customization, our team at McMaster works with customers as a team, developing the most fitting motors for each individual application. We take pride in our technical experience, production capability and product quality, and we are most certain that you will be satisfied with the solutions we offer.
Efficiency and Drive System
McMaster has always dedicated to the development of the motor, the drive systems, and the compatibility with the application. The synergy of the trio brings the solution to a whole new level - ultimate efficiency and versatile control experience.
Dedicated Choice for Everyone, Everywhere
It is safe to say that the presence of DC motors in our everyday life cannot be ignored. Ranging from small home appliances, HVAC systems to industrial automation and even aerospace industries, we have seen this type of motor acting as the key parts for all the applications.
To fit as many applications as possible and promote the electrification is our goal. Therefore, the team at McMaster dedicates itself to full customization, and is always ready to work with the customer to design the most fitting, efficient solutions. Over the year we have gradually reduced the focus on off-the-shelf motors, and every unique motor we manufactured is dedicated to its own application.
Quick Detail:
DC motors are one of the most versatile, common type of motors around the globe.
This type of motor is used in vast applications:
lEVs and hybrid vehicles
lConsumer electronics
lIndustrial Automation
lAerospace and defense
lMedical Devices
lHVAC systems
lRenewable Energy
lEtc.
The core specifications of DC motors include:
lPower ratings (voltage, torque, speed)
lDimension&weight requirements
lEfficiency
lControl Method
lOperation conditions and requirements
lLifespan and reliability
Please refer to table below for the complete specification list. For our catalog, please click the link: Catalog
|
Voltage Range: |
12/24/48/72/110/220V |
|
Rated Load Current: |
400-88000mA |
|
Rated Load Speed: |
800-6300rpm |
|
Torque: |
0.015-4Nm |
|
Power: |
5-1000W |
|
Protection Level |
Customizable |
|
Operation Temperature |
-15℃ ~ 45℃ (customizable) |
|
Limit-Switch |
Available |
|
Cable Length |
Customized |
|
Connector |
Customized |
|
Mounting |
Customized |
|
Certifications |
UL, ETL, CE, ROHS, PSE, CCCF |
|
Warranty |
1-2 years (Extended warranty may apply) |
Why Choose Us:
lMcMaster has been supplying DC brushless motors worldwide for over 23 years. With our rich experience and in-depth understand of our customers, we have successfully expanding our fields of application to solar systems, home appliances, industrial & production automation, etc.
lMcMaster knows what customers need. The team strives to provide hassle-free total solution that maintain a consistent good quality, competitive cost while keeping the purchasing experience efficient, reliable and enjoyable.
lOur quality mindset - quality is everyone’s job. Incorporate TQM/TQE, Six Sigma System and all other tools and systems, we strive for nothing but the best for the customers. McMaster is also ISO 9001 certified.
Tag:
lDirect Current Motor
lBrushed DC Motor
lPermanent Magnet DC Motor
lPMDC Motor
lSeries Wound DC Motor
lShunt Wound DC Motor
lCompound Wound DC Motor
lDC Electric Motor
lDC Drive Motor
lVariable Speed DC Motor
lHigh Torque DC Motor
lLow Voltage DC Motor
lHigh Voltage DC Motor
lMiniature DC Motor
lMicro DC Motor
lDC Gear Motor
lDC Traction Motor
lServo DC Motor
lCoreless DC Motor
lDC Motor with Encoder
