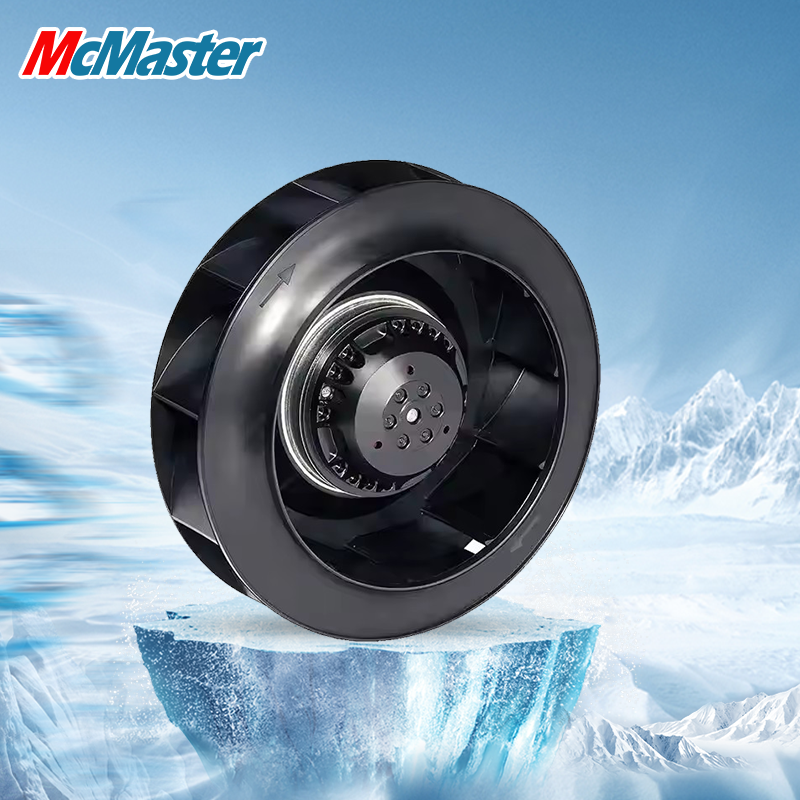

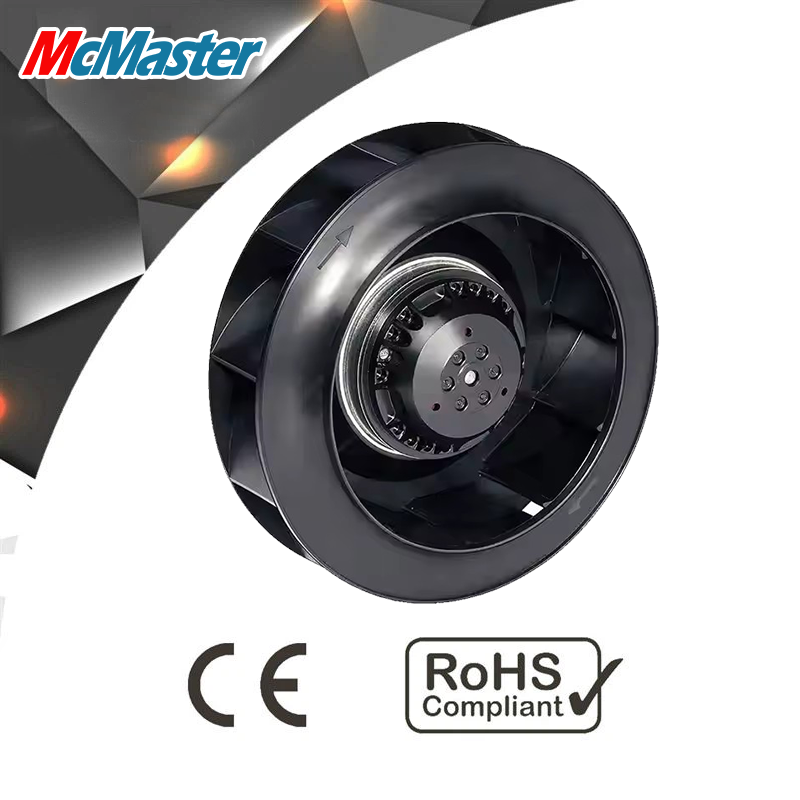

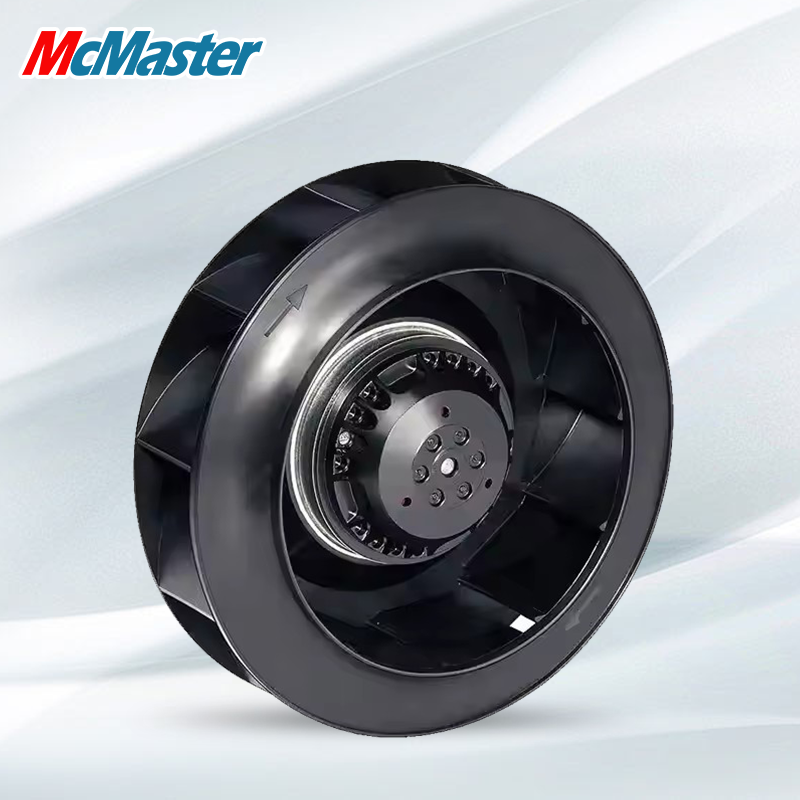

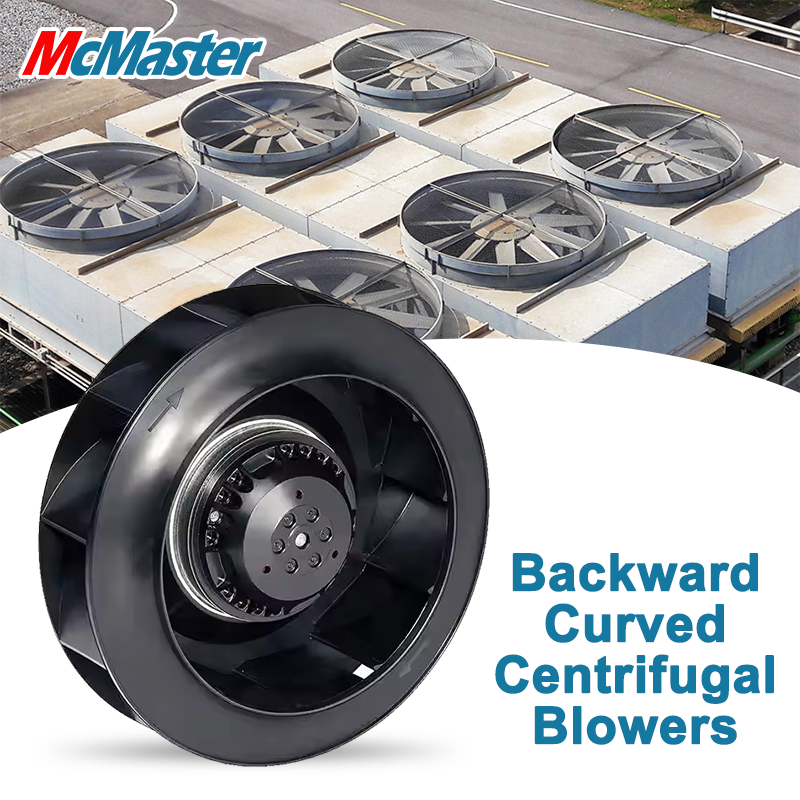

Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application:
centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available.
Details:
| Model | Size(mm) | Voltage(V) | Frequency(Hz) | Input Power(W) | Current(A) | Air Volume(m3/h) | Noise(dBA) | Max EnvironmentalTemperture(℃) | Weight(Kg) |
| BMF-4E133 | 133 | 230 | 50/60 | 47 | 0.39 | 335 | 64 | 50 | 1.2 |
| BMF-4E175 | 175 | 230 | 50/60 | 125 | 1.0 | 720 | 75 | 50 | 1.3 |
| BMF-4C190 | 190 | 24 | 65 | 2.7 | 670 | 68 | 50 | 1.0 | |
| BMF-4E192 | 192 | 230 | 50/60 | 120 | 1.0 | 750 | 65 | 50 | 1.5 |
| BMF-6E192 | 192 | 230 | 50/60 | 171 | 1.3 | 956 | 73 | 50 | 2.2 |
| BMF-4E220 | 220 | 230 | 50/60 | 115 | 1.0 | 1000 | 65 | 50 | 1.5 |
| BMF-6E220 | 220 | 230 | 50/60 | 105 | 1.0 | 990 | 66 | 50 | 2.4 |
| BMF-6E220-01 | 220 | 230 | 50/60 | 180 | 1.3 | 1200 | 68 | 50 | 2.4 |
| BMF-4E225 | 225 | 230 | 50/60 | 95 | 0.8 | 1025 | 65 | 50 | 1.7 |
| BMF-6E225 | 225 | 230 | 50/60 | 210 | 1.6 | 1280 | 68 | 50 | 2.6 |
| BMF-6E250 | 250 | 230 | 50/60 | 270 | 1.8 | 1550 | 72 | 50 | 3.4 |
| BMF-6E250-01 | 250 | 230 | 50/60 | 540 | 2.38 | 2850 | 74 | 50 | 5.2 |
| BMF-6E250-02 | 250 | 230 | 50/60 | 598 | 4.55 | 2750 | 76 | 50 | 5.2 |
| BMF-6E250-03 | 250 | 230 | 50/60 | 803 | 3.47 | 2850 | 75 | 50 | 7.2 |
| BMF-6D250 | 250 | 400 | 50/60 | 840 | 1.4 | 2850 | 75 | 50 | 7.2 |
